Sizes and tolerances

Sizes and tolerances

Description

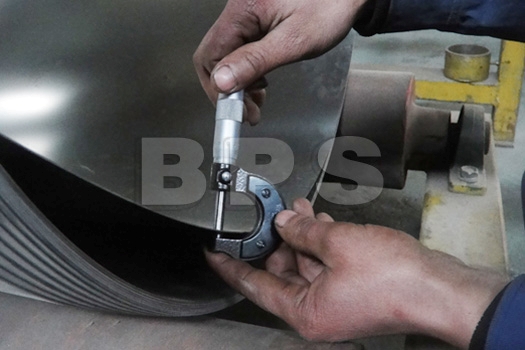

BPS-SB-steel belt can be supplied in the following size ranges. Standard dimensional tolerances is according to the standard EN 10088-1.
Steel belt is normally supplied with a bright rolled surface. Other types of surfaces, such as bright annealed, dull, polished or ground surface can be offered on request.

Thickness	Width	Thickness tolerance, inch +/- Tolerance class
inch	inch	B1	B2	B3	B4
.0630- <.0787	- <.79 .79- <1.97 1.97- <4.9 4.9- <9.8 9.8- <15.7 15.7- <23.6 23.6- <31.5	.0098 .0118 .0138 .0157 .0197 .0276 .0354	.0079 .0079 .0118 .0118 .0138 .0197 .0236	.0059 .0059 .0079 .0079 .0098 .0138 .0157	.0039 .0039 .0059 .0059 .0079 - -
.0787- <.0984	- <.79 .79- <1.97 1.97- <4.9 4.9- <9.8 9.8- <15.7 15.7- <23.6 23.6- <31.5	.0138 .0138 .0157 .0177 .0217 .0315 .0394	.0098 .0098 .0118 .0138 .0157 .0236 .0276	.0079 .0079 .0079 .0098 .0118 .0157 .0197	.0059 .0059 .0059 .0079 .0098 - -
.0984- <.1575	- <.79 .79- <1.97 1.97- <4.9 4.9- <9.8 9.8- <15.7 15.7- <23.6 23.6- <31.5	- .0157 .0177 .0197 .0236 .0315 .0394	- .0118 .0118 .0138 .0157 .0246 .0276	- .0079 .0079 .0098 .0118 .0157 .0197	- .0059 .0059 .0079 .0098 - -
Stock program

■ = stock standard
□ = available combination

Thickness	BPS-SB-1200SA			BPS-SB-1850SM			BPS-SB-1600SM
mm	Tensile strength (MPa)			Tensile strength (MPa)			Tensile strength (MPa)
	1300	1500	1700	1700	1900	2050	1300	1500	1700
0.60	□	■	□	□	■		□	□
0.70	□	■	□	□	■		□	□
0.80	■	□	□	□	■		□	■
0.90	□	□	■	□			□	□
1.0	□	■	□	□			□	□
1.5	□	■	□	□			□	□
2.0	□	□					■
2.5	□						□
3.0							■
